SNRcat - G034.7-00.4

Supernova Remnant G034.7-00.4

Image Downloads

Processed JPG

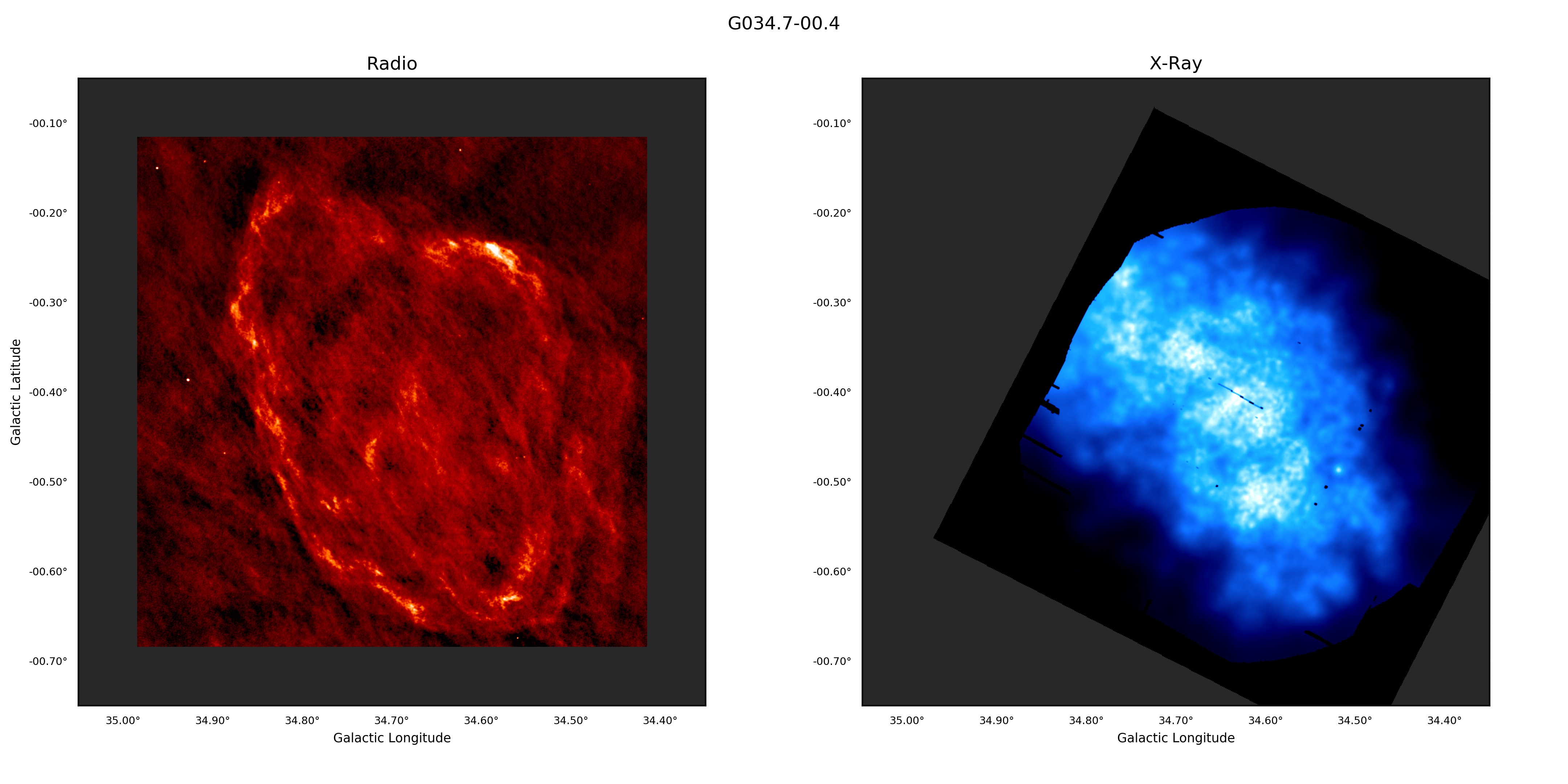

multiwavelength G034.7-00.4_RX_GAL_axes.jpg Size: 997.71 KB

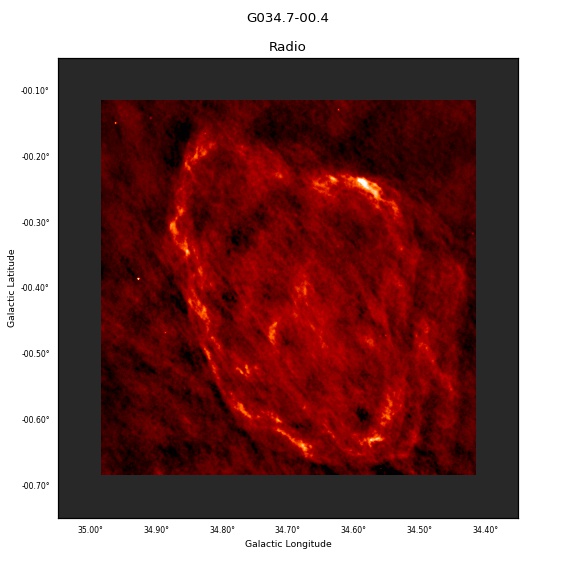

radio G034.7-00.4_R_GAL_axes.jpg Size: 69.10 KB

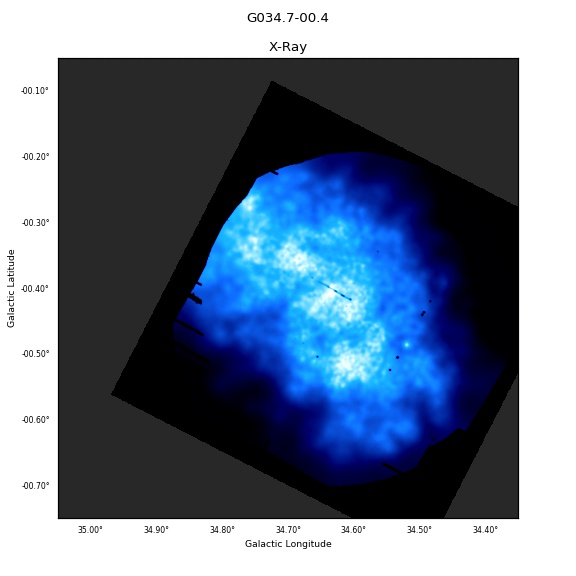

keV G034.7-00.4_X_GAL_axes.jpg Size: 46.60 KB

Unprocessed FITS

keV W44-adapt-750-1300_GAL.fits Size: 5.84 MB
radio G034.7-00.4_1.42E09_VLAH.fits Size: 4.01 MB

Description

Identification

Id: G034.7-00.4
Unique ID: G034.7-00.4
Previous IDs: G34.6-0.5
Other Names: W44, 3C392
Supernova Event:
Supernova Event Reference

2017ApJ...844...84H

1995ApJ...442..679K

Location

J2000 R.a.: 18:56:00
J2000 Dec.: 01:22:00
J2000 From: Green J coord
Constellation: Aql

Environment

Context: inside W48 complex, contains PSR B1853+01 = J1856+0113 + PWN G34.56-0.50
Cloud Interaction: certain
Cloud Interaction Reference

2025A&A...693A.199C

2017ApJ...834L...3Y

2016PhDT.......145M

2015APh....71...36H

2014A&A...569A..81A

2013ApJ...774...10S

2011MmSAI..82..703F

2009ApJ...706L.270H

2008MNRAS.390...49M

2008ApJ...683..189H

2008ApJ...676..371P

2007MNRAS.378L..20W

2007ApJ...670L.117F

2005ApJ...627..803H

2005ApJ...618..297R

2004AJ....127.1098S

2003ApJ...585..319Y

2000ApJ...544..843R

1999ApJ...522..349C

1999ApJ...511..798C

1999AJ....117.1387C

1998ApJ...508..690F

1998ApJ...505..286S

1997ApJ...489..143C

1996AJ....111.1651F

1989MNRAS.238..737G

1977ApJ...216..440W

1968ApL.....2...81G

Age

Shell: 7900 - 8900 yr
Pulsar: 20400 yr

Age Reference

Distance

Shell: 2.1 - 3.3 kpc
Pulsar: 3 kpc

Distance Reference

Properties

Radio Index: 0.37
Radio Size: 35'x27'
X-ray Size:
Type: thermal & plerionic composite
Type Reference

2020ApJ...890...62O

2015ApJ...799..103Z

2012PASJ...64..141U

2012A&ARv..20...49V

2005ApJ...631..935K

2004ApJ...611..906S

2003ApJ...585..319Y

1998ApJ...503L.167R

1997ApJ...488..781H

1994ApJ...430..757R

1993MNRAS.265..631J

1985MNRAS.217...99S
Magnetic Field: radial ?
Magnetic Field Reference

2017MNRAS.464.4107G

2011A&A...536A..83S

1987AuJPh..40..771M

High-energy observations

ID	Energy	Instrument	Resolution	Source Of Emission	Last Record	Published Papers	Web Pages
	TeV	Whipple	missed		1998	1998A&A...329..639B
	TeV	VERITAS	missed		2009	2025ApJ...983...73A	http://cxc.harvard.edu/cdo/snr09/pres/mukherjee_reshmi.pdf
	TeV	Tibet AS-gamma	missed		2010	2010ApJ...709L...6A
	TeV	MAGIC	missed		2025	2025A&A...693A.255A
	TeV	HESS	missed		2018	2018A&A...612A...3H 2011PhDT.......329B
FGES J1856.3+0122 3FHL J1855.9+0121e 3FGL J1855.9+0121e 2FGL J1855.9+0121e 1FHL J1855.9+0121e 1FGL J1856.1+0122 0FGL J1855.9+0126	GeV	Fermi	extended	shell, cloud	2025	2025A&A...693A.255A 2020ApJ...896L..23P 2017ApJS..232...18A 2017ApJ...843..139A 2016ApJS..224....8A 2015ApJS..218...23A 2015ApJS..217....2M 2013Sci...339..807A 2013ApJS..209...34A 2012ApJS..199...31N 2012ApJ...756....5L 2012ApJ...749L..35U 2010Sci...327.1103A 2010ApJS..188..405A 2009ApJS..183...46A	http://www.nasa.gov/mission_pages/GLAST/news/supernova-cosmic-rays.html http://www.nasa.gov/mission_pages/GLAST/news/cosmic-rays-source.html
GeV J1856+0115 GRO J1853+01 EGR J1856+0235 3EG J1856+0114 2EG J1857+0118	GeV	EGRET	extended	shock+cloud? PSR? (association not confirmed in revised catalogue)	2008	2008A&A...489..849C 2003PhR...382..303T 2001ApJS..133..451R 1999A&A...348..868R 1998A&A...335..234Z 1997ApJ...488..872L 1996ApJ...461..820E 1996A&AS..120C.445S 1995A&A...293L..17S
2AGL J1856+0119e 1AGL J1857+0137	GeV	AGILE	extended	shell	2019	2019A&A...627A..13B 2014A&A...565A..74C 2011ApJ...742L..30G 2009A&A...506.1563P
	keV	XMM-Newton	extended	PSR, shell	2019	2025ApJ...983...73A 2020ApJ...890...62O 2006ESASP.604..369H	http://xmm.esac.esa.int/external/xmm_science/gallery/public/level3.php?id=343 http://heasarc.gsfc.nasa.gov/docs/xmm/gallery/esas-gallery/xmm_gal_science_w44.html
	keV	Suzaku	extended	shell, CR+cloud?	2018	2018ApJ...854...87N 2012PASJ...64..141U
	keV	ROSAT	extended	shock+cloud?	2017	2017ApJ...844...84H 1998ApJ...503L.167R 1997ApJ...488..781H 1994ApJ...430..757R
	keV	INTEGRAL	missed		2005	2005inte.workE..25T 2004ESASP.552..501T
	keV	Ginga	detected	shell	1997	1997ApJ...488..781H
	keV	EXOSAT	detected	shell	1997	1997ApJ...488..781H 1994ApJ...430..757R 1993MNRAS.265..631J
	keV	Einstein	extended	shell	1997	1997ApJ...488..781H 1994ApJ...430..757R 1993MNRAS.265..631J 1990ApJS...73..781S 1985MNRAS.217...99S
G034.7-00.4 and G034.7-00.4P	keV	Chandra	extended	PSR + PWN	2017	2017ApJ...844...84H 2013arXiv1305.2552K 2008AIPC..983..171K 2004ApJ...611..906S 2002ApJ...579..404P	http://hea-www.cfa.harvard.edu/ChandraSNR/G034.7-00.4P/ http://hea-www.cfa.harvard.edu/ChandraSNR/G034.7-00.4/
G34.7-0.4	keV	ASCA	extended	PSR + PWN	2005	2005ApJ...631..935K 2001ApJS..133..451R 1996ApJ...464L.161H	http://www.astro.columbia.edu/~eric/atlas/asca/snrs/G34.7-0.4/G34.7-0.4.html

External Resources

Green Catalogue
CATS Database

Data as of 2025-05-05 - Web site version 2.0
