Supernova Remnant G054.1+00.3

Image Downloads

Processed JPG

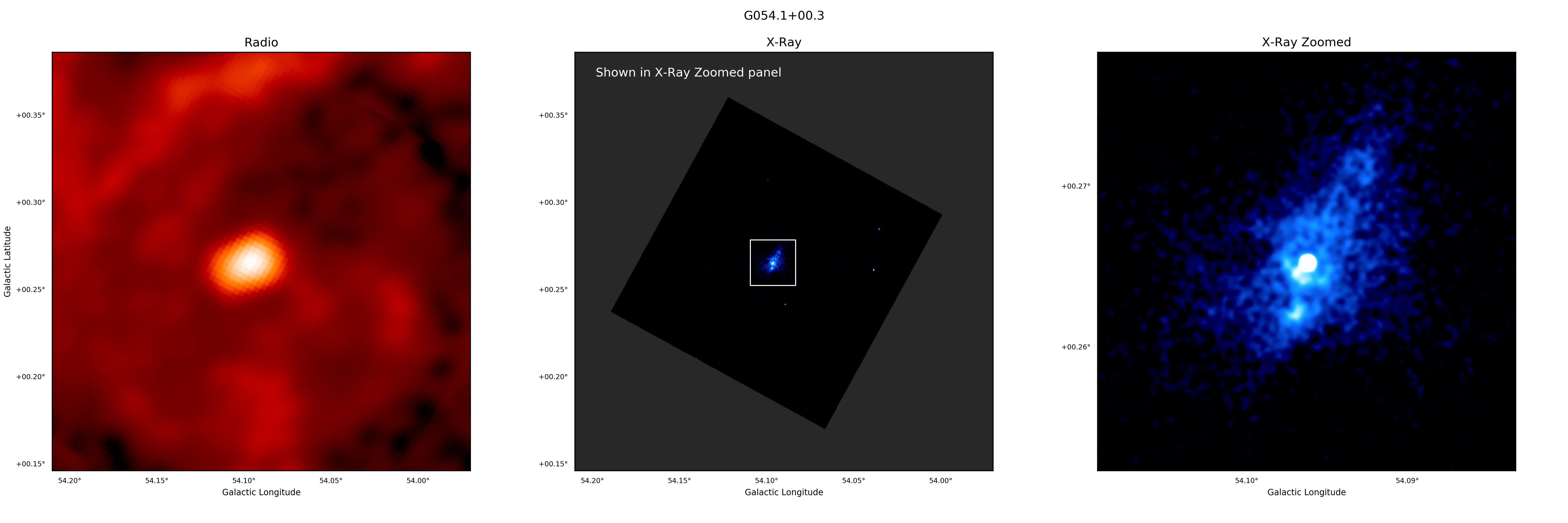

multiwavelength G054.1+00.3_RXZ_GAL_axes.jpg Size: 744.07 KB
radio G054.1+00.3_R_GAL_axes.jpg Size: 43.40 KB

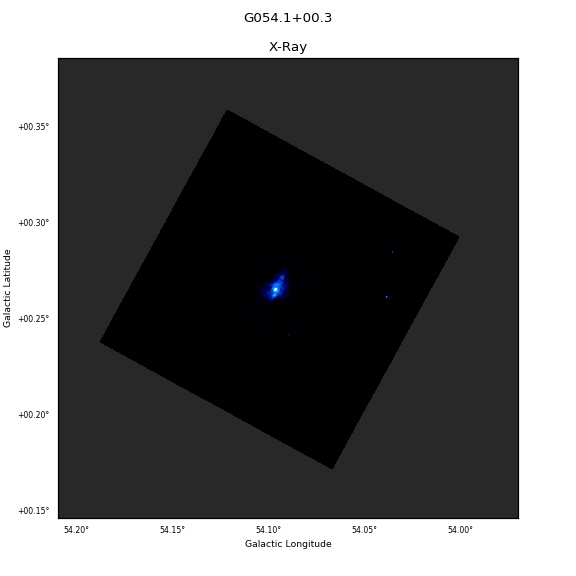

keV G054.1+00.3_X_GAL_axes.jpg Size: 25.06 KB
keV G054.1+00.3_Z_GAL_axes.jpg Size: 42.13 KB

Unprocessed FITS

keV G054.1+00.3_2.42e+17_CHAN.fits Size: 14.74 MB
radio G054.1+00.3_1.52E09_VLA_.fits Size: 7.33 MB

Description

Identification

Id: G054.1+00.3
Unique ID: G054.1+00.3
Previous IDs:
Other Names:
Supernova Event:
Supernova Event Reference

2005ApJ...619..839C

Location

J2000 R.a.: 19:30:31
J2000 Dec.: 18:52:00
J2000 From: Green J coord
Constellation: Sge

Environment

Context: contains PSR J1930+1852 + PWN G54.10+0.27
Cloud Interaction: probable
Cloud Interaction Reference

2016ApJ...816....1K

2015APh....71...36H

2012JKAS...45..117L

2008ApJ...673L.147K

2008AJ....136.1477L

1997AJ....114.2058G

Age

Shell: 1500 - 2400 yr
Pulsar: 2900 yr

Age Reference

Distance

Shell: 4.1 - 7.2 kpc
Pulsar: 6.2 kpc

Distance Reference

Properties

Radio Index: 0.1
Radio Size: ~12'
X-ray Size: 2'x1.3'
Type: plerionic composite ?
Type Reference

2002ApJ...568L..49L

1989AJ.....97..481S

1988AJ.....95.1162V

1985A&A...151L..10R
Magnetic Field:

High-energy observations

ID	Energy	Instrument	Resolution	Source Of Emission	Last Record	Published Papers	Web Pages
VER J1930+188	TeV	VERITAS	detected	probably PWN	2017	2018ApJ...866...24A 2010ApJ...719L..69A 2008PhDT........34M	http://veritas.sao.arizona.edu/veritas-science/veritas-results-mainmenu-72/235
LHAASO J1929+1745 J1929+1846	TeV	LHAASO	extended	shell? PSR?	2021	2021Natur.594...33C
HESS J1930+188	TeV	HESS	detected	shell? PWN?	2018	2018A&A...612A...2H 2018A&A...612A...1H 2011PhDT.......329B
3HWC J1930+188 2HWC J1930+188	TeV	HAWC	detected	shell?	2023	2023ApJ...942...96A 2020ApJ...905...76A 2018ApJ...866...24A 2017ApJ...843...40A
	GeV	Fermi	detected	PWN? (not in latest catalogue)	2023	2023RAA....23j5003X 2018ApJ...866...24A 2016ApJS..224....8A 2015ApJS..218...23A 2013ApJS..208...17A 2012ApJS..199...31N 2010ApJS..188..405A
	keV	XMM-Newton	extended	shell?	2010	2010A&A...520A..71B
	keV	Suzaku	extended	shell?	2010	2010A&A...520A..71B
	keV	RXTE	detected	PSR	2007	2007ApJ...663..315L
	keV	ROSAT	extended	jet?	2001	2001A&A...370..570L
	keV	INTEGRAL	detected	PSR?	2021	2021Univ....7..135M
	keV	Einstein	detected	PWN?	1990	1990ApJS...73..781S 1989AJ.....97..481S 1989A&A...216..193L
G054.1+00.3	keV	Chandra	extended	PSR + PWN	2020	2020MNRAS.498..821G 2010ApJ...710..309T 2008AIPC..983..171K 2004ApJ...601..479N 2002ApJ...568L..49L	http://hea-www.cfa.harvard.edu/ChandraSNR/G054.1+00.3/ http://chandra.harvard.edu/photo/2010/g541/ http://chandra.harvard.edu/photo/2002/g541/
G54.1+0.3	keV	ASCA	extended	PSR, jet?	2002	2002ApJ...574L..71C 2001A&A...370..570L	http://www.astro.columbia.edu/~eric/atlas/asca/snrs/G54.1+0.3/G54.1+0.3.html
