Supernova Remnant G069.0+02.7 (uncertain SNR)
Image Downloads
Processed JPG
multiwavelength

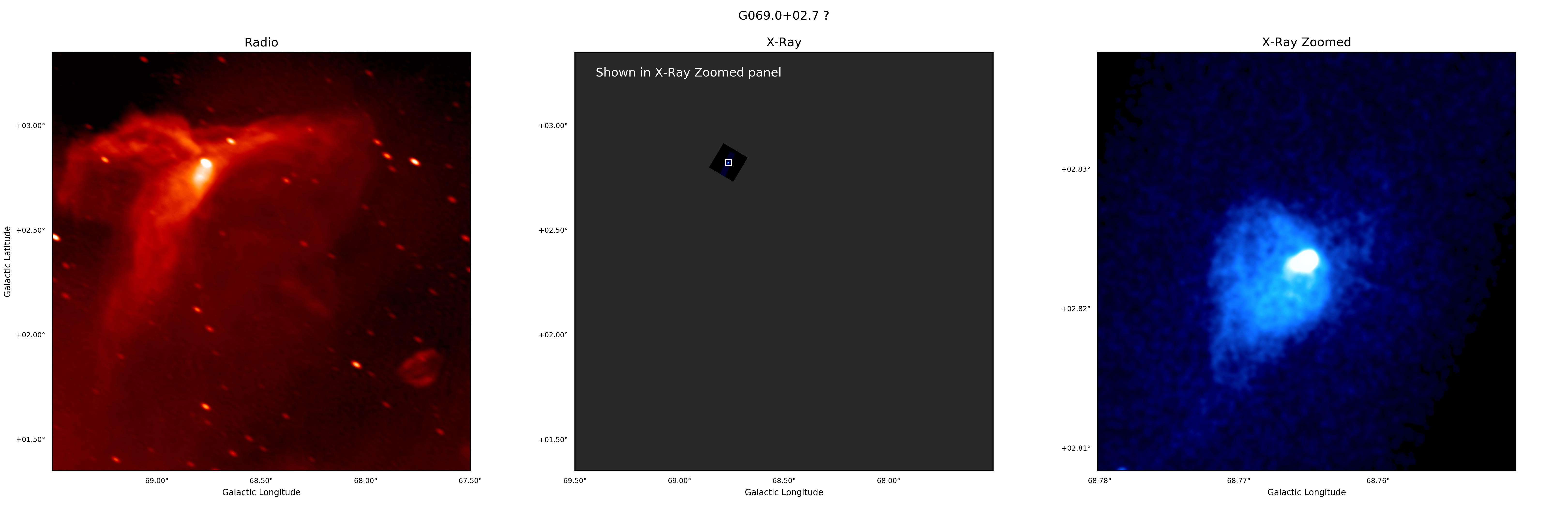

G069.0+02.7_RXZ_GAL_axes.jpg Size: 782.26 KB
radio

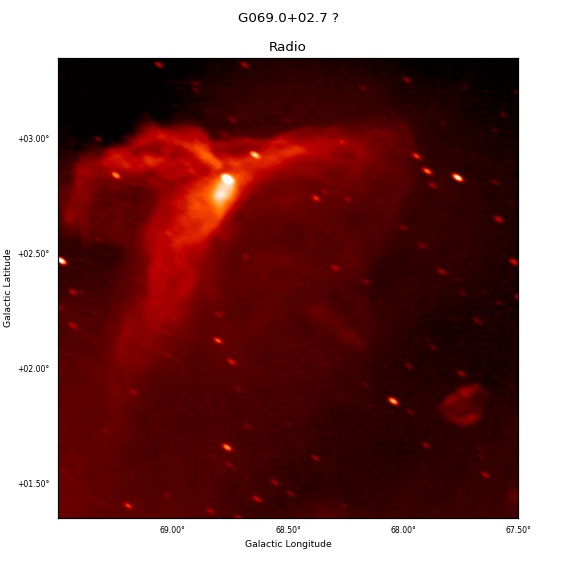

G069.0+02.7_R_GAL_axes.jpg Size: 47.18 KB
keV

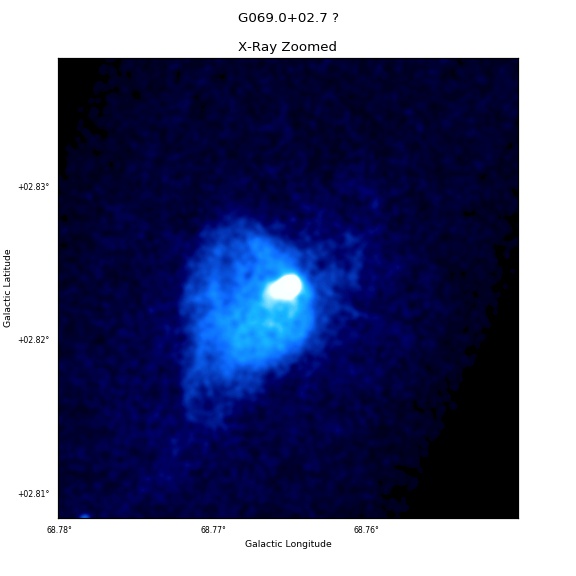

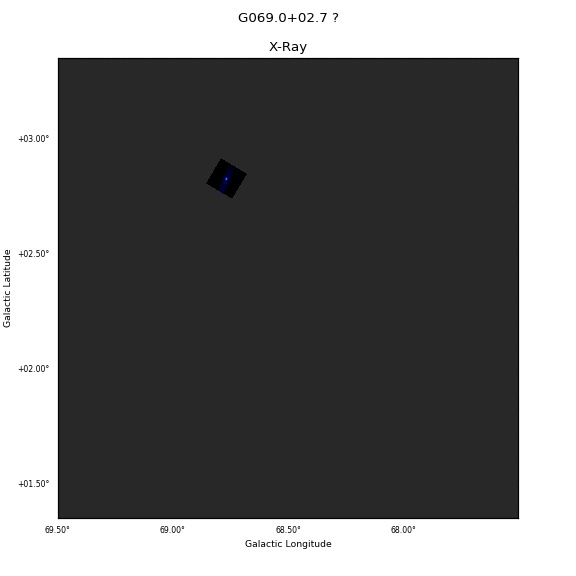

G069.0+02.7_X_GAL_axes.jpg Size: 19.44 KB
keV
G069.0+02.7_Z_GAL_axes.jpg Size: 45.05 KB
Unprocessed FITS
keV
G069.0+02.7_2.42e+17_CHAN.fits Size: 15.04 MB
radio
G069.0+02.7_1.42E09_CGPS.fits Size: 4.01 MB
Description
Identification
- Id: G069.0+02.7
- Unique ID: G069.0+02.7 (uncertain SNR)
- Previous IDs: G68.8+2.8
- Other Names: CTB 80, W56
- Supernova Event: 1408 : dubious
Supernova Event Reference
Location
- J2000 R.a.: 19:53:20
- J2000 Dec.: 32:55:00
- J2000 From: Green J coord
- Constellation: Cyg
Environment
- Context: contains PSR B1951+32 = J1952+3252 + PWN G68.77+2.82
- Cloud Interaction: unlikely
Cloud Interaction Reference
Age
- Shell: 60000 yr
- Pulsar: 100000 yr
Age Reference
Distance
- Shell: 1.5 - 4.6 kpc
- Pulsar: 2.5 kpc
Distance Reference
Properties
- Radio Index:
- Radio Size: 80'
- X-ray Size:
- Type: plerionic composite
Type Reference
- Magnetic Field: tangential ?
Magnetic Field Reference
High-energy observations
External Resources
Green CatalogueCATS Database
