Supernova Remnant G132.7+01.3
Image Downloads
Processed JPG

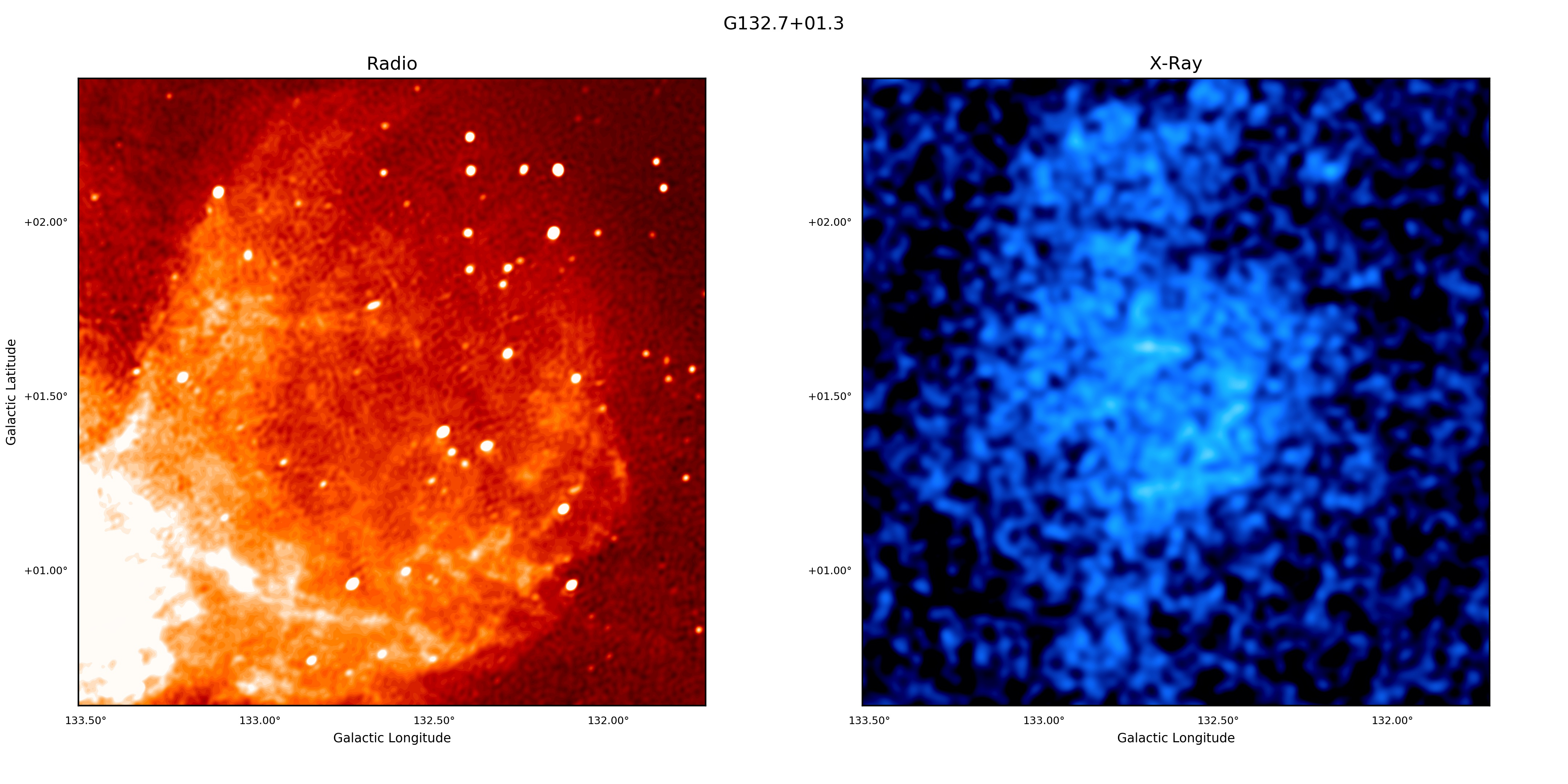

multiwavelength G132.7+01.3_RX_GAL_axes.jpg Size: 1.26 MB

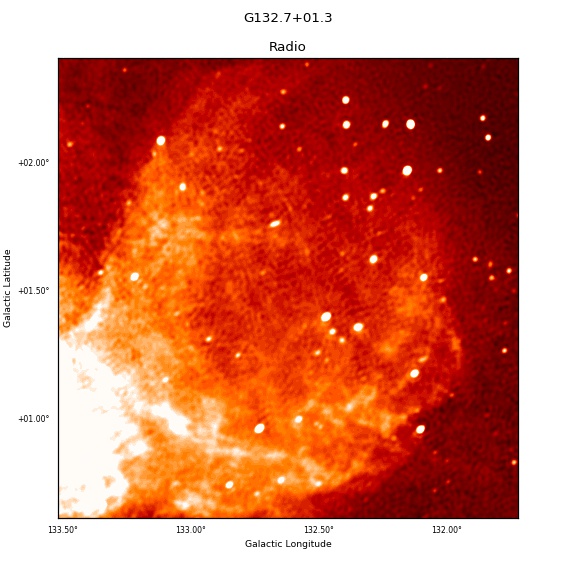

radio G132.7+01.3_R_GAL_axes.jpg Size: 100.56 KB

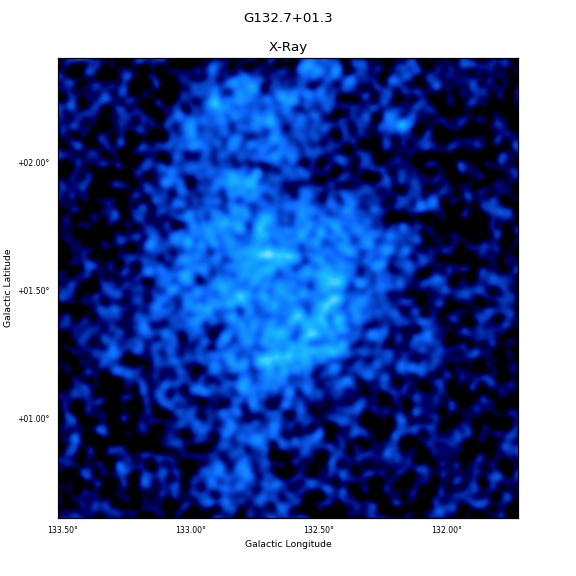

keV G132.7+01.3_X_GAL_axes.jpg Size: 80.21 KB
Unprocessed FITS
keV G132.7+01.3_2.42e+17_RASS.fits Size: 1.12 MBradio G132.7+01.3_1.42E09_CGPS.fits Size: 843.75 KB
Description
Identification
- Id: G132.7+01.3
- Unique ID: G132.7+01.3
- Previous IDs: G132.4+2.2
- Other Names: HB3
- Supernova Event:
- Supernova Event Reference
Location
- J2000 R.a.: 02:17:40
- J2000 Dec.: 62:45:00
- J2000 From: Green J coord
- Constellation: Cas
Environment
- Context: adjacent to W3/4/5 complex, PSR J0215+6218 nearby
- Cloud Interaction: certain
- Cloud Interaction Reference
Age
- Shell: 25000 - 72000 yr
- Pulsar: 13000000 yr
- Age Reference
Distance
- Shell: 2 - 2.2 kpc
- Pulsar: 3.2 kpc
- Distance Reference
Properties
- Radio Index: 0.6
- Radio Size: 80'
- X-ray Size:
- Type: thermal composite
- Type Reference
- Magnetic Field:
- Magnetic Field Reference
High-energy observations
| ID | Energy | Instrument | Resolution | Source Of Emission | Last Record | Published Papers | Web Pages |
|---|---|---|---|---|---|---|---|
| TeV | HAWC | missed | 2021 | 2021arXiv210802863F | |||
| 3FGL J0220.1+6202c and J0224.0+6235 2FGL J0214.5+6251c and J0218.7+6208c and J0221.4+6257c 1FGL J0218.8+6158c and J0220.0+6257 |
GeV | Fermi | detected | shell?, cloud? | 2024 | 2024MNRAS.532.2006W 2021arXiv210802863F 2016ApJS..224....8A 2016ApJ...818..114K 2015ApJS..218...23A 2015ApJS..217....2M 2012ApJS..199...31N 2010ApJS..188..405A |
|
| EGR J0225+6240 | GeV | EGRET | detected | ? | 2008 | 2008A&A...489..849C | |
| keV | XMM-Newton | extended | shell | 2006 | 2006ApJ...647..350L | ||
| keV | ROSAT | extended | shell | 2006 | 2006ApJ...647..350L 1998ApJ...503L.167R |
||
| keV | HEAO-1 | detected | shell | 1980 | 1980ApJ...236L..13G | ||
| keV | Einstein | extended | shell | 1990 | 1990ApJS...73..781S 1985ApJ...294..183L 1984MNRAS.208P..25V |
||
| G132.6+1.5 | keV | ASCA | extended | shell | 2006 | 2006ApJ...647..350L | http://www.astro.columbia.edu/~eric/atlas/asca/snrs/G132.6+1.5/G132.6+1.5.html |
External Resources
Green CatalogueCATS Database
